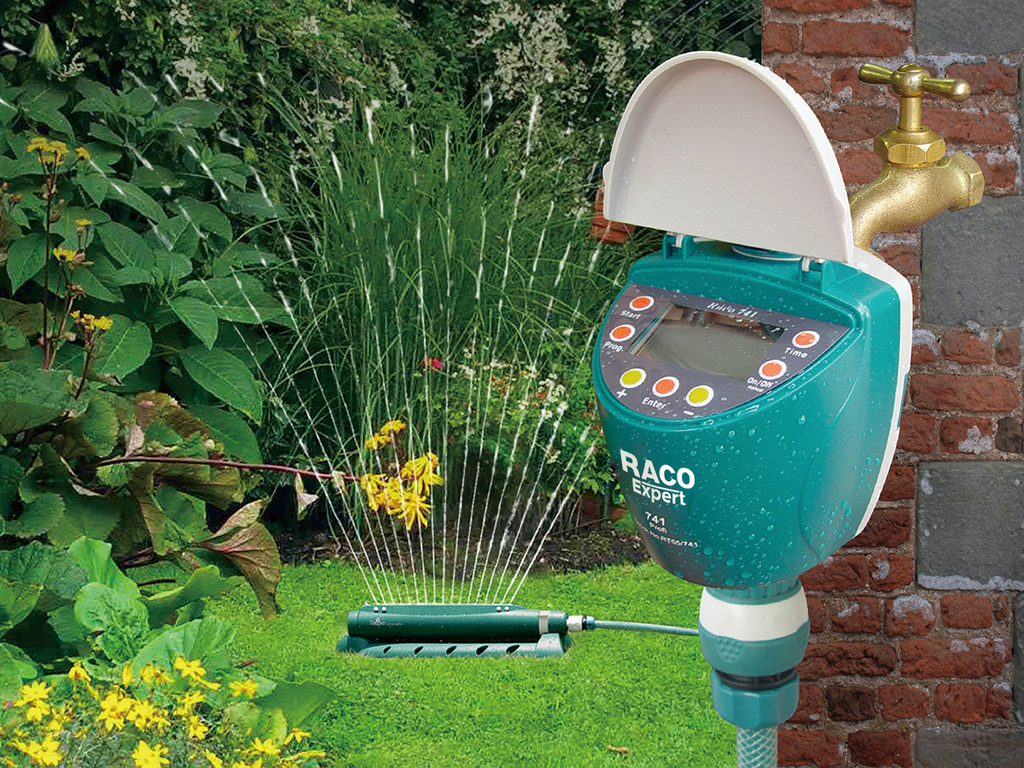

741 WATER COMPUTER
RT55/741
- Programme with water saving feature ensures maximum water efficiency.
- 7-button easy operation and programme- guided data setting including automatic on/off.
- Individual programming settings:
- Watering up to 12 times a day.
- Watering duration up to 120 minutes.
- Watering days can be freely selected. - Water flow can be adjusted by season to increase and decrease.
- Can used to control an automatic water distributor.
- For fully automatic control of garden sprinklers and dripping system.

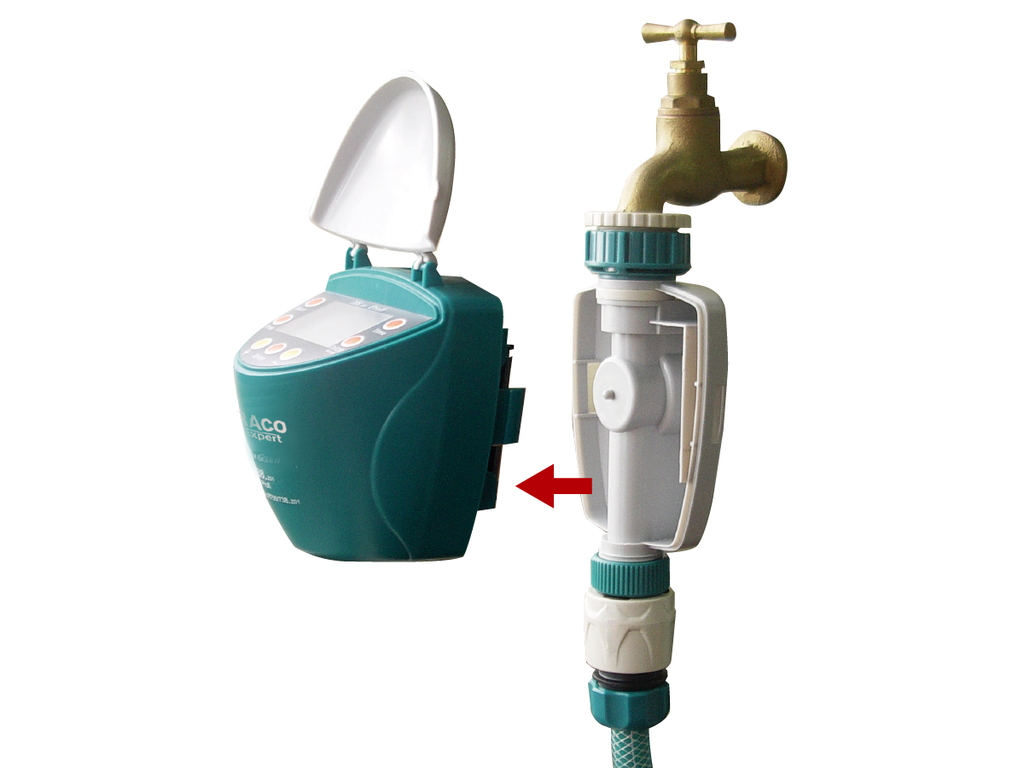

- For taps with a 26.5mm (3/4") or 33.3mm (1") thread.
- Approx. 2 years running time with 2 x AA alkaline batteries. (not included)
Technucal Data
| Packaging | Barcode |
| Display Box | 4712780278161 |

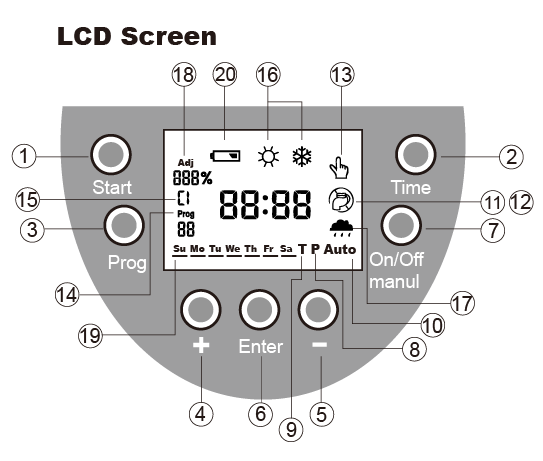

- Start For putting timer into operation mode.
- Time For the current time and day setting.
- Prog For entering programming mode (Including desired watering program).
- + For increasing watering duration, time, or to move between days.
- - For decreasing watering duration, time, or to move between days.
- Enter For confirming the selected set data.
- on/off For turning water on and off in manual mode or in programming.
- Program Setting Mode- displays when you are in programming mode.This enables user to set desired watering programs
into the timer. Note: Then timer will back to operating mode when the timer let in programming mode for one minute
without any operation. - Time Set Mode- displays when the timer is in time adjustment mode. Minutes, hours, and weekdays are available for
adujstment in this mode. - Operation Mode- displays when the timer is in operation mode. Watering will take place according to programs set by user.
- Watering ON- displays watering in progress or selecting watering day for User define / calendar of watering mode. It is also
display the manual watering mode is activated. - Watering OFF - displays watering not in progress or selecting non- watering day for User define / Calendar of watering
mode. It is also display the manual watering mode is off. - Hand Manual Mode: display the time is on Manual Mode for temporary watering. The Operation Mode setting does not
work in this mode. - Prog- displays the selected program number and currently program in operation.
- Cycle watering -Displays the selected watering frequency.
- Summer/Winter-displays the daylight saving to shift between summer and winter. The adjust the timer clock forward or
backward by one hour. - Rain Sensor-displays rain sensor is activated and interrupts watering program, (It is not available).
- Seaon Adjust Mode- Allows you to alter the watering duration of set programs without reprogramming. Seasonal
adjustment can be set from 10% to 200% or -10% to -200% (in 10% increments) of programmed watering duration. - Day of Week – indicate the current day of week in automatic mode and the day of selected User defined calendar
watering in programming mode. - Battery Low - low battery icon will flash when the battery power is low. This will prevent programs from activating and put
the timer not to work as scheduled.
